GPLEP – Precision planetary gearboxes

GPLEP – Precision planetary gearboxes

The GPLEP precision planetary gearboxes are equipped with reinforced output bearings, and can withstand high radial and axial loads. They enable a simple design without additional bearings for the drive wheel.

  • Low circumferential backlash
  • High output torques
  • High efficiency
  • Any installation position
  • Lifetime lubrication

GPLEP – Precision planetary gearboxes  –  Products

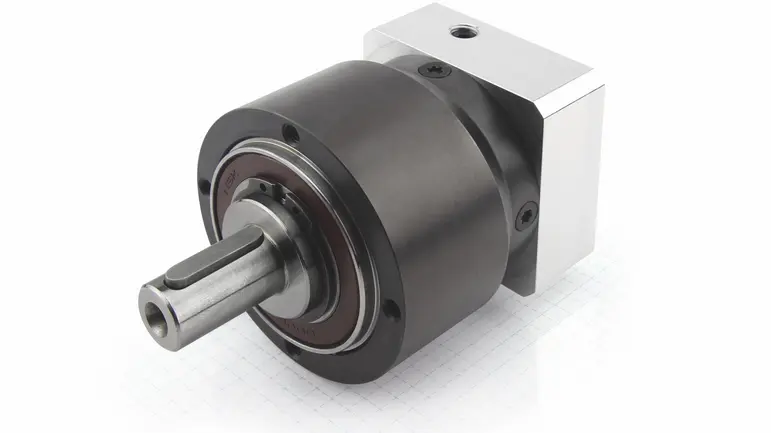

GPLEP70

GPLEP70 – Precision planetary gearboxes

Gearboxes in various lengths and reductions for NEMA 23 (56 mm) and NEMA 24 (60 mm) motors. Available in various lengths and reductions.
  • Reduction Ratio 5  - 25
  • Rated Output Torque 15 Nm - 30 Nm
  • Efficiency 95 % - 97 %
  • Max. Backlash 10 ´(arc minutes) - 12 ´(arc minutes)
