PD2-C411L18-E-65-01 –  Stepper motor with integrated controller IP65 – NEMA 17

Cadenas

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}
{{ discount.amount }} - 24
For quantities greater than 24, please contact us for volume pricing.
For quantities greater than 10, please contact us for volume pricing.

Availability

  • This article will be manufactured on request.
Configure

Under „Downloads“ you will find the technical manual that corresponds with the stock firmware. Please refer to the new technical manual and the document “Instructions for Firmware Update to Version FIR-v2039” when using Plug & Drive Studio 2.


You can configure this article with others. Please click the configure button below to start.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (50)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)
Shaft modification Shaft modification (1)

Technical Data

  • Size
  • Fieldbus -
  • Holding Torque
  • Rated Current (RMS) 1.8 A
  • Number of Digital Inputs 5
  • Number of Analog Inputs 1
  • Number of Digital Outputs 2
  • Encoder
  • Encoder Resolution 1024 CPR
  • Weight
  • NEMA 17
  • Interface USB
  • Operating Voltage 12 VDC - 48 VDC
  • Peak Current (RMS) 3 A
  • Type of Digital Inputs 24 V, 5/24 V switchable
  • Type of Analog Input 0 - 20 mA / 0 - 10 V switchable
  • Type of Digital Output open-drain (max. 24 V/100 mA)
  • Encoder Type single-turn absolute
  • Length

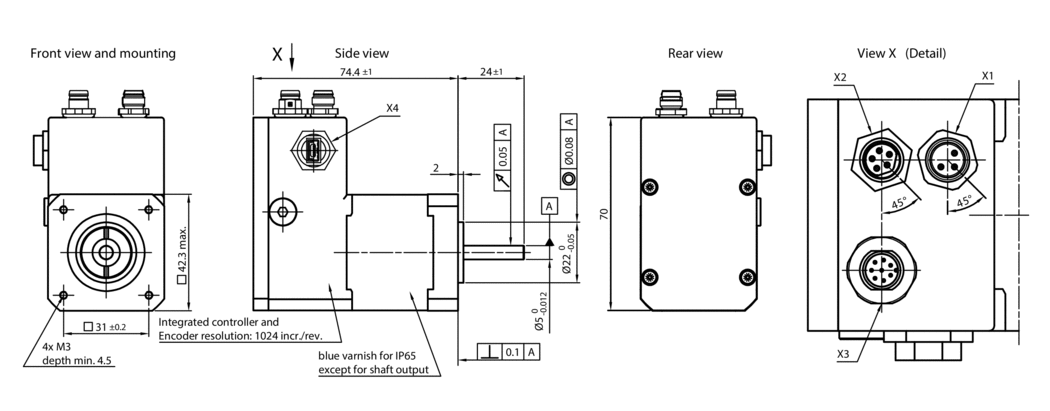

Dimensions

PD2-C411L18-E-65-01
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Manuals
Software
Certificates

Accessories

ZK-M8-3-2M-1-AFF Power straight, 2m
ZK-M8-8-2M-1-PUR-S IO straight, 2m
Z-K4700/50 Capacitor
ZK-USB Mini USB cable, 1.5m
ZK-M8-5-2M-1-PUR-S-F IO straight, 2m
