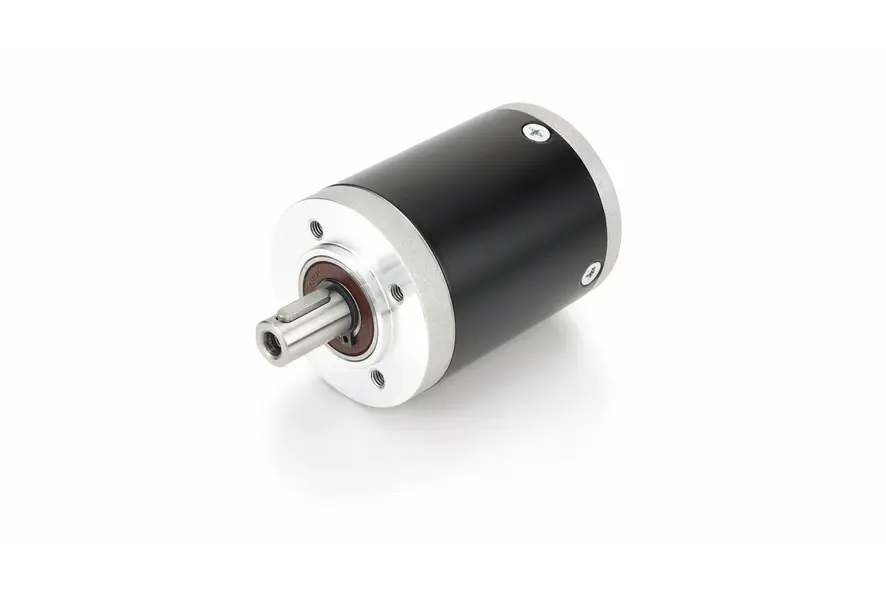

GP56-N2-16-SR –  Low-noise planetary gearboxes

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

The GP56-N gearboxes can only be ordered with a motor.

Technical Data

• For Motor Size 68 mm (BLDC), NEMA 23, NEMA 24
• Efficiency 86 %
• Rated Output Torque 7.4 Nm
• Reduction Ratio 15.61
• Moment of Inertia 3.5 kg mm²
• Operating Temperature -10 °C - 50 °C
• Flange Length L1
• Admissible Axial Shaft Load 1250 N
• IP-Protection Gearbox IP54

• Type Standard Bearing
• Max. Backlash 21 ´(arc minutes)
• Max. Output Torque 15.1 Nm
• Max. Input Speed 6050 rpm
• Service Life 5000 h
• Length "L"
• Weight
• Admissible Radial Shaft Load 470 N

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• GP56-N2-xx-SRS (stp, 353 KB)
• GP56-N2-xx-SRR (stp, 357 KB)

Datasheets

• GP56-N2-16-SR (pdf, 213 KB)

Certificates

• EU-DoC_GP56-N
•
