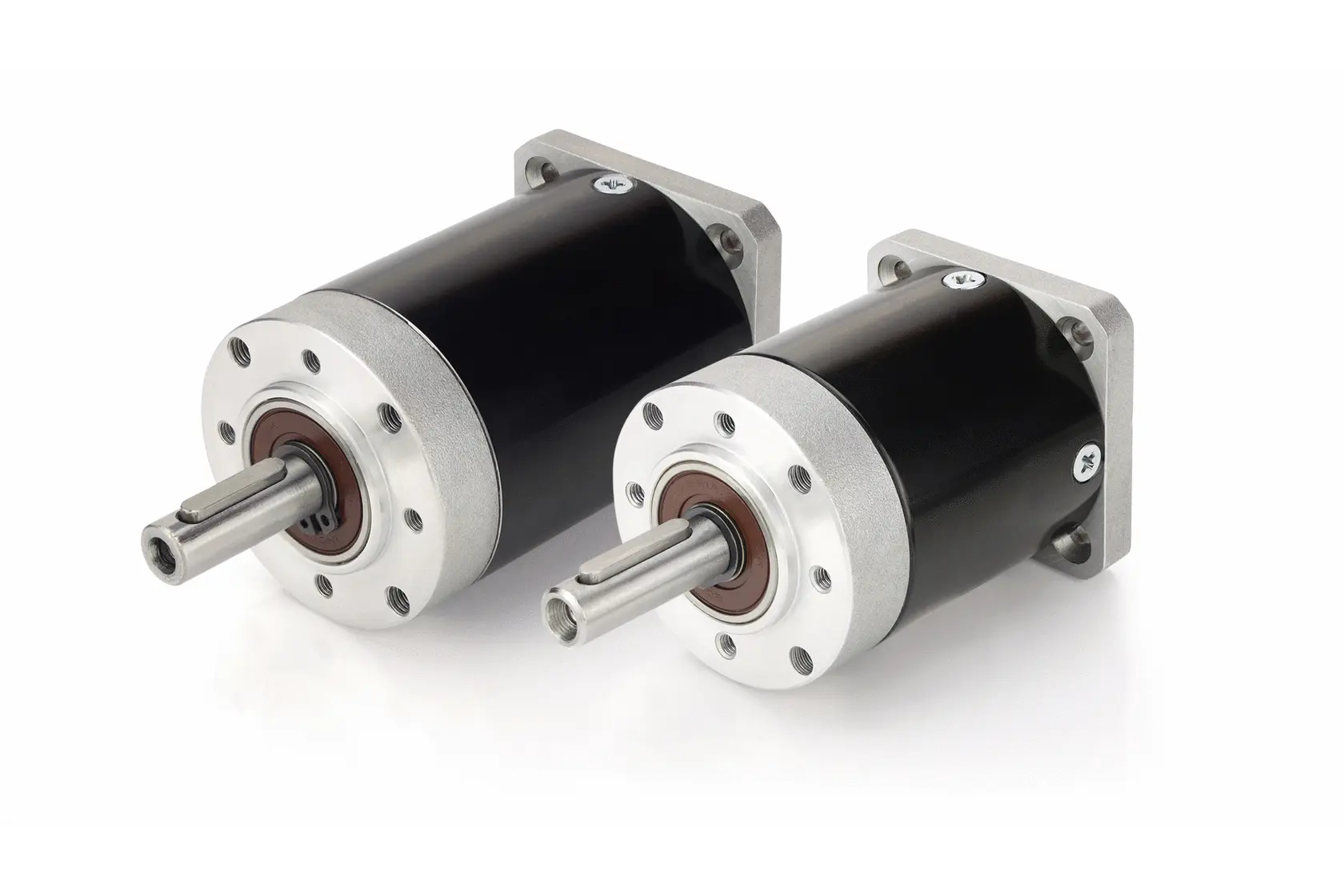

GP42-N –  Low-noise planetary gearboxes

GP42-N

Low-noise planetary gearboxes for brushless DC motors and stepper motors with NEMA 17 flange (42 mm) and the external rotor motors of the DF45 series. Thanks to their modular concept, these gearboxes are quick and easy to adapt to individual customer requirements. Seven different gear ratios are available.

  • One- and two-stage designs
  • Rated output torque: 0.8 - 4.9 Nm
  • Service life: 5,000 h @ 3,000 rpm
  • With keyway
  • Protection class IP54

Please note:
For vertically installed geared motors (gearbox on top of the motor), the gearboxes can be equipped with radial shaft seals on request. This way Hall sensors, encoders and integrated motor controllers are protected from the gearbox lubricant.
