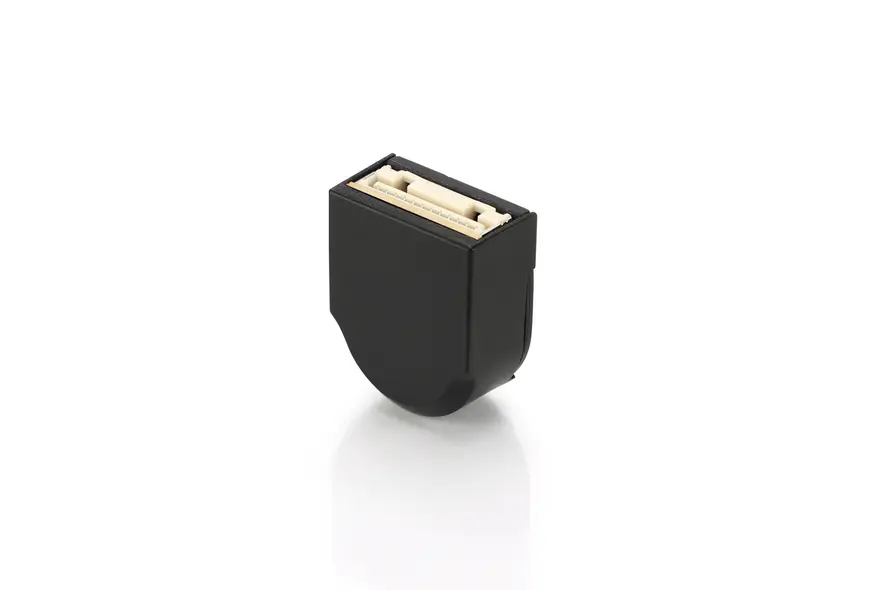

NME3-UVW-W14-05-C1 –  Compact magnetic encoder

Single Price

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

• More stock available soon.

This article cannot be ordered alone, only as part of a combination.

Technical Data

• Index
• Encoder Signal Type incremental
• Shaft Diameter
• Output Signals phase A, A\, B, B\, I, I\, H1, H2, H3
• Operating Temperature -20 °C - 105 °C
• Humidity max. 90 % (no condensation)

• Line Driver
• Encoder Resolution 4096 CPR
• Operating Voltage (Encoder) 4.50 – 5.50 V
• Limit Speed 14000 RPM
• Storage Temperature -40 °C - 105 °C

---

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• NME3-xxx-xxx-xx-C1 (stp, 2 MB)

Datasheets

• NME3 (pdf, 466 KB)

Conformity

• EU-DoC_NME3.pdf
•

Accessories

ZK-NME2-12-500-S

Encoder cable NME2/3 0.5m
