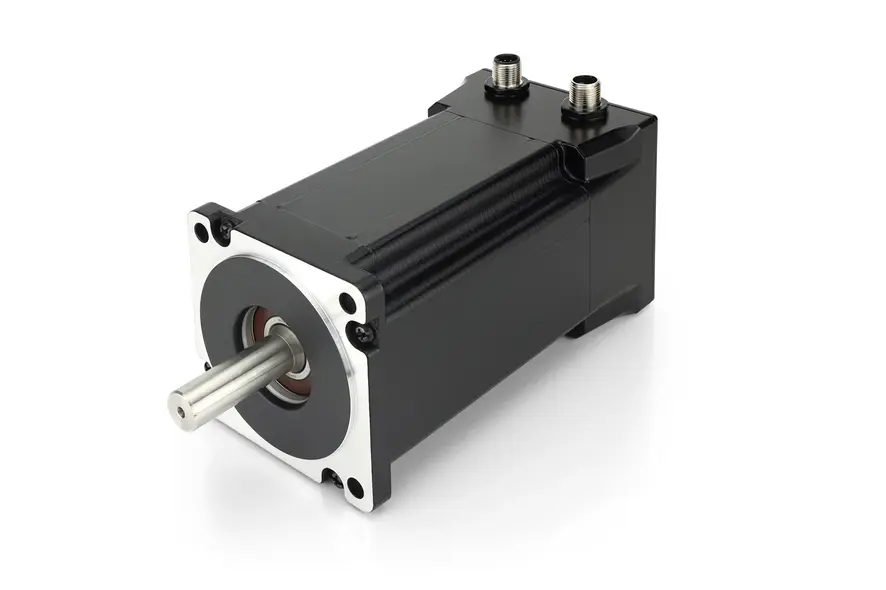

ASA8618L95-W1 –  Stepper motor IP65 with UL/CSA certification – NEMA 34

Cadenas

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (45)

Technical Data

  • Size 86 mm
  • IP-Protection Motor (Except Shaft Output) IP65
  • Holding Torque 933 Ncm
  • Inductance per Winding 2.4 mH
  • Length "A" 155 mm
  • Brake
  • Encoder Signal Type SSI
  • Operating Voltage (Encoder) 4.75 – 15.00 V
  • NEMA 34
  • Current per Winding 9.5 A
  • Resistance per Winding 0.26 Ohm
  • Rotor Inertia 3000 gcm²
  • Weight 4.6 kg
  • Encoder
  • Encoder Resolution SSI 17 Bit Single-Turn / 16 Bit Multi-Turn Absolute

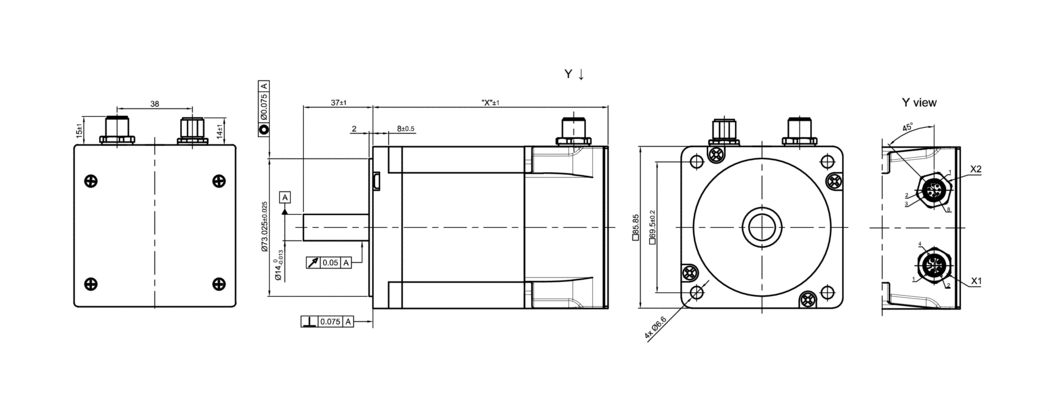

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Speed [rpm]Torque [Nm]1.002.004.006.008.0010204060801002004006008001 0002 00003.006.009.0012
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Torque
Output power
Torque [Nm] at 329.90 rpm
9.5A 48V


 5.78
9.5A 24V


 2.77

Downloads

CAD
Datasheets
Conformity

Accessories

ZK-M12-4-2M-1-LFF Motor cable straight, 2m
ZK-M12-4-2M-2-LFF Motor cable angled, 2m
ZK-M12-4-5M-1-LFF Motor cable straight, 5m
ZK-M12-4-5M-2-LFF Motor cable angled, 5m
ZK-M12-8-2M-1-AFF Encoder cable straight, 2m
ZK-M12-8-2M-2-AFF Encoder cable angled, 2m
ZK-M12-8-5M-1-AFF Encoder cable straight, 5m
ZK-M12-8-5M-2-AFF Encoder cable angled, 5m
ZK-M12-8-2M-2-PADP Encoder cable angled, 2m
