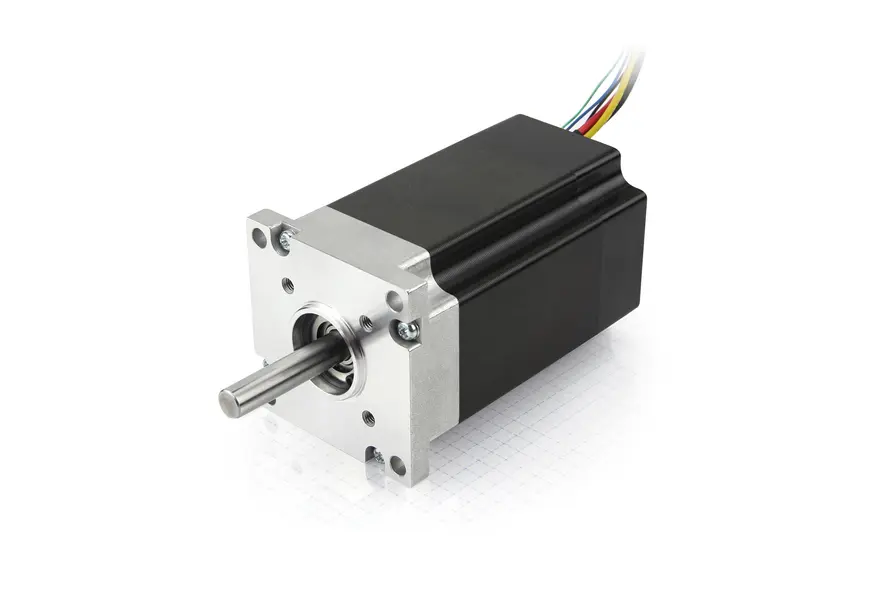

DB56D036030-A –  Brushless DC motor

Cadenas

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

Combine article
Please click on „Combine Article” or the plus sign to start the configurator.
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (35)
Shaft modification Shaft modification (1)

Technical Data

  • NEMA -
  • Rated Power 188 W
  • Rated Torque 85 oz-in
  • Rated Current 7.5 A
  • Rated Speed 3000 rpm
  • Rotor Inertia 460 gcm²
  • Line to Line Inductance 0.58 mH
  • Weight 2.6 lb
  • Size 2.2 in
  • Rated Voltage 36 V
  • Peak Torque 254.9 oz-in
  • Peak Current 22.5 A
  • Torque Constant 8 Ncm/A
  • Line to Line Resistance 0.53 Ohm
  • Length "A" 4.6 in
  • Shaft D-shaft

Dimensions

Torque Curves

log/linlin/linlin/loglog/log
Created with Highcharts 9.3.3Torque [Nm]Speed [rpm]Efficiency [%]0.200.400.600.801.001.201.401.601.802.002.2001 2002 4003 6004 8000255075100
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Speed
Output power
Efficiency
Input Power
Power loss
Current consumption
Continuous Operation
Speed [rpm] at 1,862.00 Nm
36V







 n/a

Downloads

CAD
Datasheets
Conformity

Knowledge Base

Brushless DC Motors | BLDC Motors from NANOTEC
Brushless direct current motors, abbreviated as BLDC motors, are – despite their name –  three-phase current synchronous machines: the rotor follows a magnetic rotational field and the movement is synchronous to the AC voltage applied to the windings. This motor type is frequently referred to as "brushless direct current motor" because, in many applications, it replaces direct current motors with brushes (brushed DC or commutator motors).…
