LSA281S10-B-THCA-152 –  External linear actuator – NEMA 11

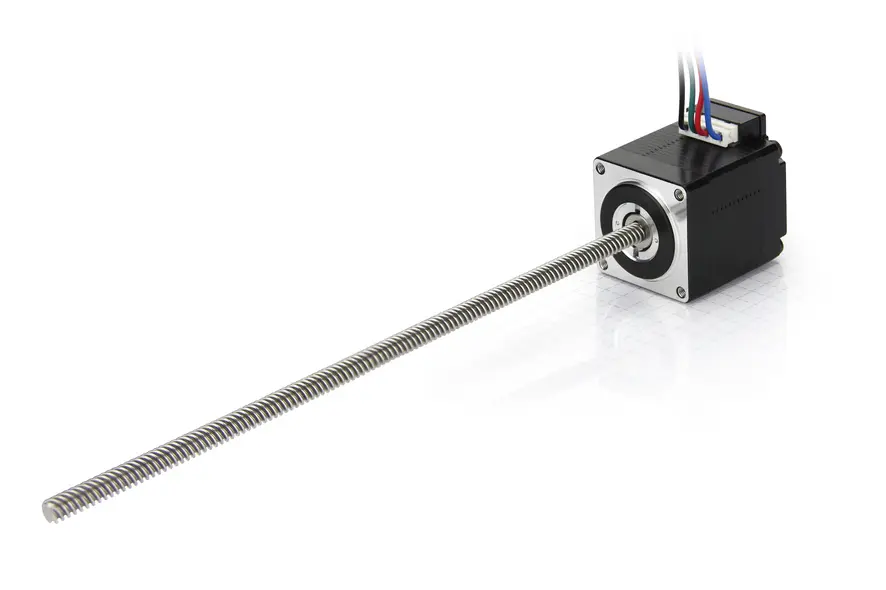

nema 11 external linear actuator with rotating screw (driven screw)
Cadenas

Single Price

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

  • More stock available soon.
Combine article

The motor cable is included in the scope of delivery.

Please click on „Combine Article” or the plus sign to start the configurator.
Encoders for BLDC motors and stepper motors Encoders for BLDC motors and stepper motors (12)

Technical Data

  • Size
  • Shaft end Double
  • Speed 40 mm/s
  • Thread Type Trapezoidal
  • Thread Lead
  • Resistance per Winding 2.7 Ohm
  • Max. Axial Play ±0.05 mm
  • Length "A"
  • NEMA 11
  • Peak Force 130.7 N
  • Current per Winding 1 A
  • Thread Diameter
  • Resolution 10 µm/step
  • Inductance per Winding 2.5 mH
  • Screw Length "L"
  • Weight

Dimensions

LSA28-A/B
Creation in progress ...

Force-Velocity Curve

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous Operation
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Conformity

Accessories

LSNUT-AEAE-THCA Axial anti-backlash threaded nut with helical spring
LSNUT-AGAC-THCA Anti-backlash threaded nut with torsion spring
LSNUT-AAAA-THCA Threaded nut
NANOLUBE-50G Bearing grease
