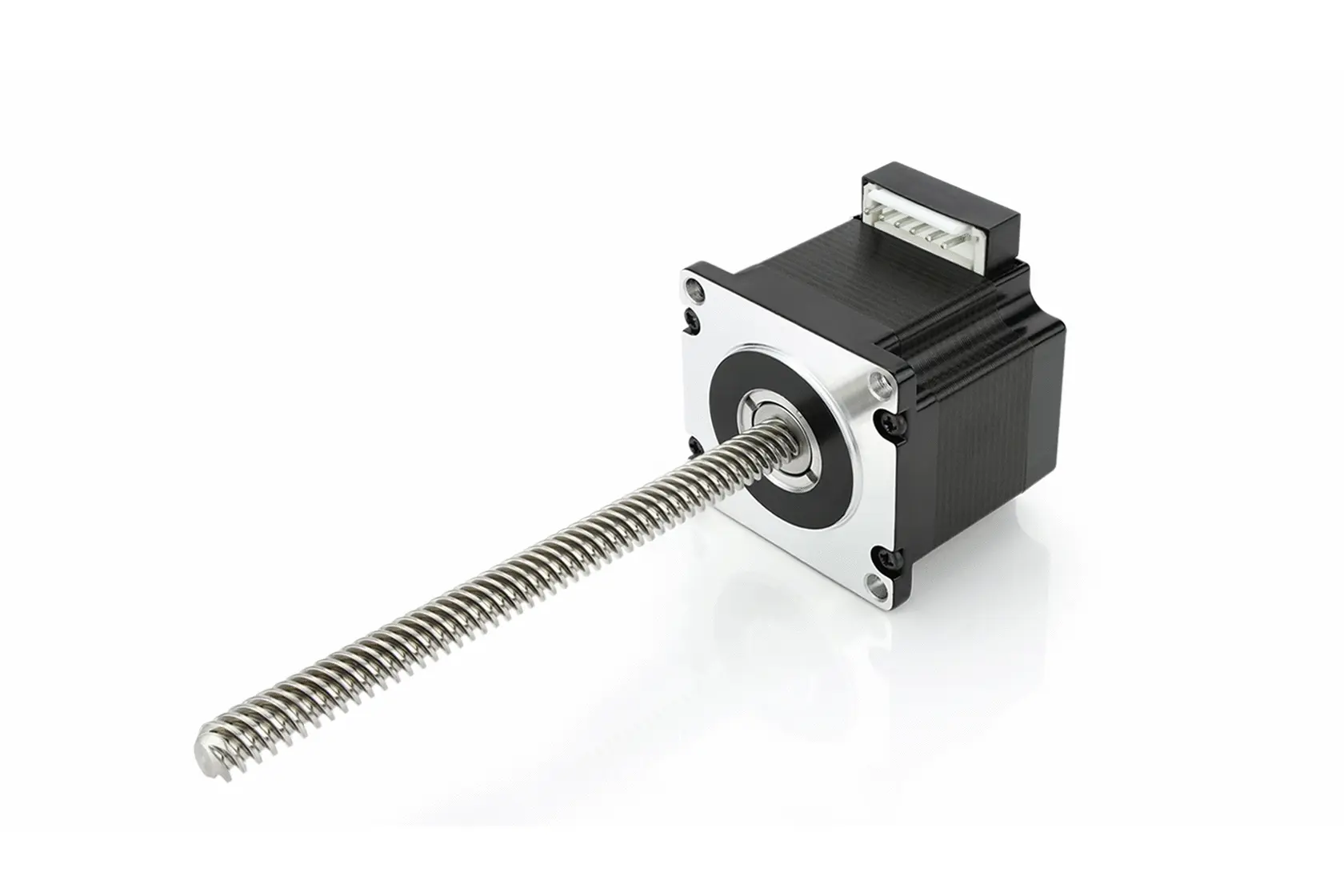

LSA56 – External linear actuator – NEMA 23
Compact linear actuator with 56 mm flange. The lead screw is attached to the motor shaft and comes with a trapezoidal or an ACME thread. Please refer to the accessories list for matching nuts.
This linear actuator is ideally suited for the installation of compact linear axes, since it does not require a coupling or a bearing base. There is no linear guide necessary for small loads and low load ratings.
- Several lengths
- Different windings
- Integrated connector
- Little installation effort
Nanotec also offers motor controllers/drives that can be matched with this linear actuator. To add an encoder, use the configure option after selecting an actuator.
The LSA56 can be combined with these encoders: NOE2-05-B06, NOE2-05-K06, NOE2-24-B06, NOE2-24-K06, WEDL5541-A06, WEDL5541-B06, WEDS5541-A06, WEDS5541-B06
Please note:
The force and output power ratings listed in the data sheets are based on a duty cycle of approx. 10% to 20% and must be reduced for higher values. Moving against fixed limit stops should be avoided.
LSA56 Articles
Please wait while productfinder is loading ...
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque [Nm] at rpm
|
||
|---|---|---|
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque [Nm] at rpm
|
||
|---|---|---|
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Force [N] at mm/s
|
|||
|---|---|---|---|
|
|||
