GP56-T3-256-HR –  High-torque planetary gearboxes

Single Price

Volume Discount

1 - {{ pna.data.discounts[0].amount - 1 }}

{{ discount.amount }} - 24

For quantities greater than 24, please contact us for volume pricing.

For quantities greater than 10, please contact us for volume pricing.

Availability

• This article will be manufactured on request.

The GP56 gearboxes can only be ordered with a motor.

Technical Data

• For Motor Size 68 mm (BLDC), NEMA 23, NEMA 24
• Efficiency 70 %
• Rated Output Torque 26.38 Nm
• Reduction Ratio 256.23
• Moment of Inertia 4.129 kg mm²
• Operating Temperature -15 °C - 90 °C
• Flange Length L1
• Admissible Axial Shaft Load 1630 N
• IP-Protection Gearbox IP54

• Type Reinforced Bearing
• Max. Backlash 45 ´(arc minutes)
• Max. Output Torque 52.76 Nm
• Max. Input Speed 10919 rpm
• Service Life 10000 h
• Length "L"
• Weight
• Admissible Radial Shaft Load 540 N

---

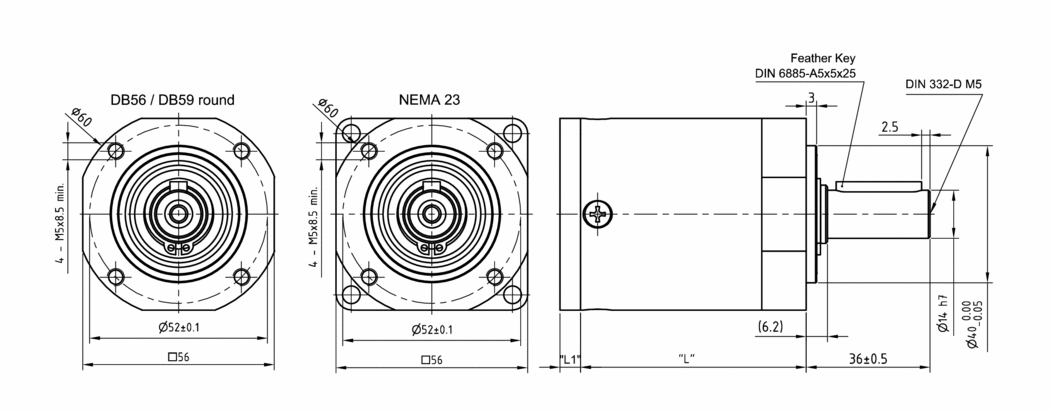

Dimensions

3D 2D

Please select a download format

Creation in progress ...

Downloads

CAD

• GP56-T3-XX-HRS (stp, 449 KB)
• GP56-T3-XX-HRR (stp, 449 KB)

Datasheets

• GP56-T3-x-HR (pdf, 262 KB)

Certificates

• EU-DoC GP56
•
