PD4-E601L42-E-65-1 – Stepper motor with integrated controller IP65 – NEMA 23/24
Availability
Add to cart
PD4-E601L42-E-65-1 was added to your basket.
Accessories
| Z-K4700/50 | Capacitor |
|
|
| ZK-M12-5-2M-1-B-S | Power straight, 2m |
|
|
| ZK-M12-12-2M-1-AFF | IO straight, 2m |
|
|
| ZK-M12-4-2M-1-D-RJ45 | EtherCAT in/out straight, 2m |
|
Under „Downloads“ you will find the technical manual that corresponds with the stock firmware. Please refer to the new technical manual (FIR-v2139) when using Plug & Drive Studio 2.
Please click on „Combine Article” or the plus sign to start the configurator.
Technical Data
-
Size 60 mm
-
Fieldbus EtherCAT
-
Holding Torque 354 Ncm
-
Rated Current (RMS) 4.2 A
-
Number of Digital Inputs 6
-
Number of Analog Inputs 1
-
Number of Digital Outputs 2
-
Length 116 mm
-
Encoder Type single-turn absolute
-
Weight 1.5 kg
-
NEMA 24
-
Interface -
-
Operating Voltage 12 VDC - 48 VDC
-
Peak Current (RMS) 4.2 A
-
Type of Digital Inputs 5/24 V switchable
-
Type of Analog Input 0 - 20 mA / 0 - 10 V switchable
-
Type of Digital Output open-drain (max. 24 V/100 mA)
-
Encoder
-
Encoder Resolution 1024 CPR

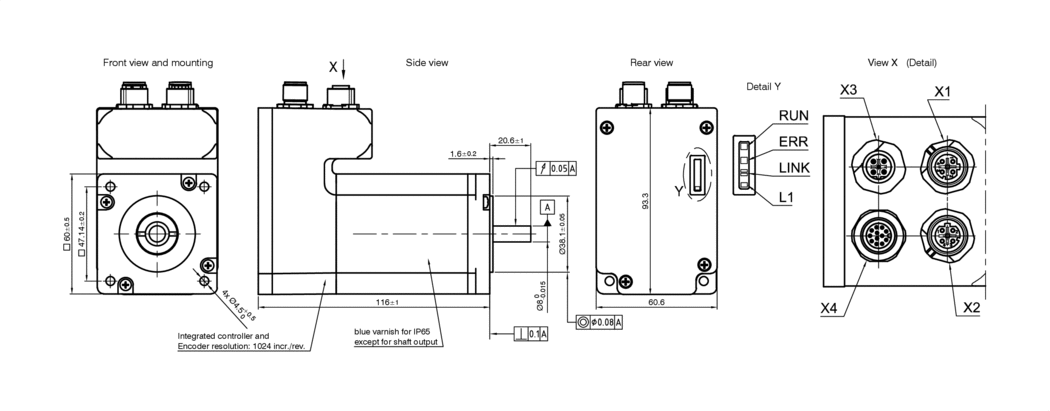

Dimensions
Torque Curves
Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Maximum short-term static load that may be reached when the service life is taken into account.
|
Torque
|
Output power
|
Torque [Nm] at 351.00 rpm
|
||
|---|---|---|---|---|
| 4.2A 24V | 1.41 | |||
| 4.2A 48V | 2.42 | |||
|
|
||||
