Connecting the NP5 controller via the Discovery Board
The NP5 Discover Board helps you during tests and during the evaluation of the NP5 controller.
The connectors necessary for the boards are supplied already installed.
Jumper X13 must be set if CANopen (NP5-08) is used; otherwise, you must remove it.
Technical data – NP5 Discovery Board
Property | Description / value |
---|---|
Operating voltage +UB: | 12 … 48 V DC ±5% |
Logic voltage +UB_Logic: | 24 V DC ±5% |
Current consumption +UB: | Max. 100 mA (without connected NP5) |
Current consumption +UB_Logic: | Max. 100 mA (without connected NP5) |
Communication interface: | SPI, CANopen |
Analog reference voltage: | 3.3 V DC ±5%, max. 10 mA |
Digital input voltage: | Max. 3.3 V DC |
DC output voltage: | 5 V DC ±3%, max. 300 mA |
Status indicator: | 4x green LEDs for GPIO 1 to 4 |
2x blue LEDs for GPIO 5 and GPIO 6 | |
1x green LED for Discovery Board (+3.3 V DC) | |
Ballast resistor: | 15 Ω/5 W |
Mounting holes: | 4× Ø 3.2 mm for Discovery Board |
Weight: | 0.12 kg |

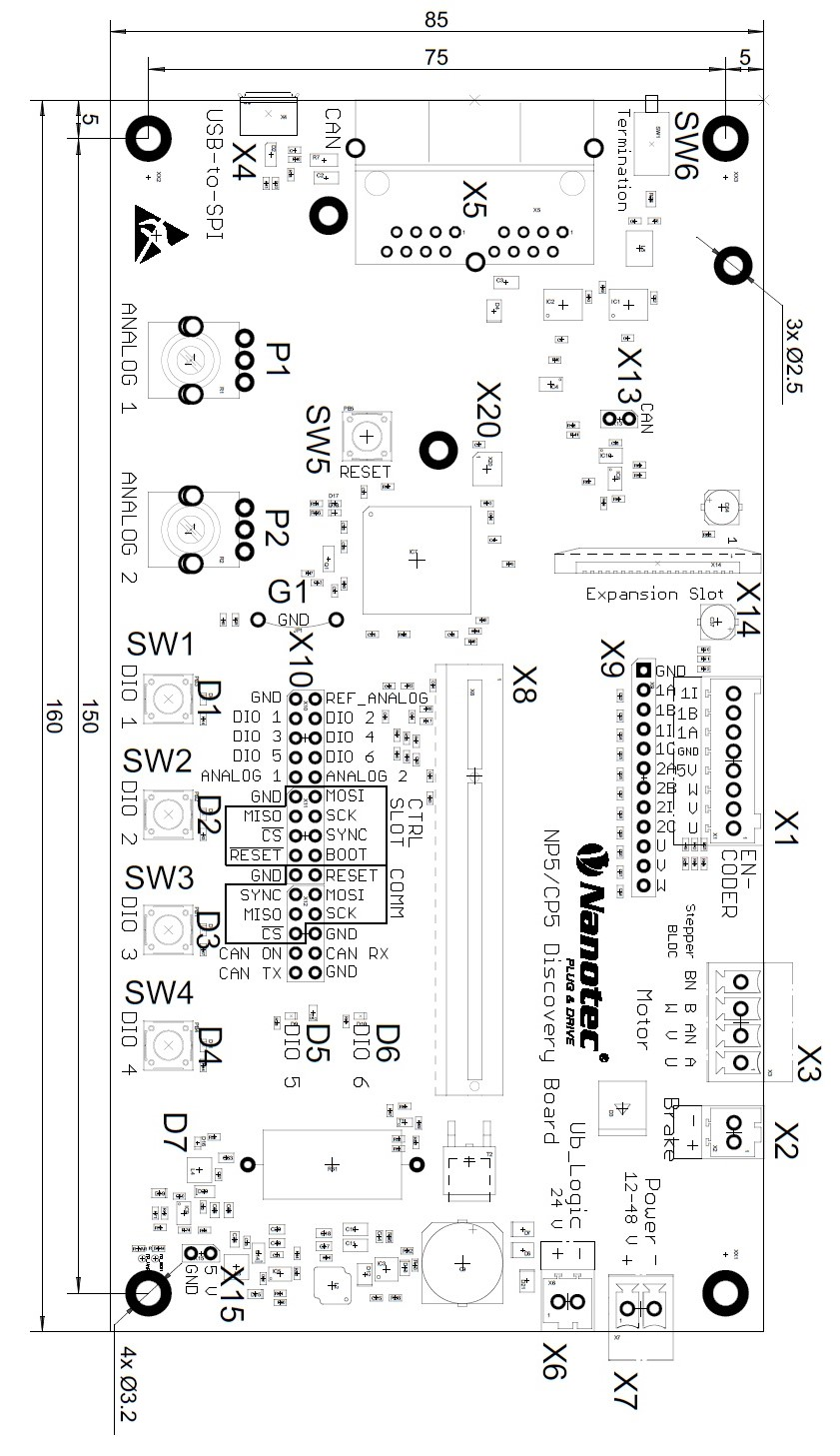

Dimensioned drawings – NP5 Discovery Board
Dimensions are in [mm].
Pin assignment – NP5 Discovery Board
Connector | Function |
---|---|
X1 | Encoder 1 and Hall sensor |
X2 | Brake |
X3 | Motor |
X4 | SPI via USB (virtual COM port) |
X5 | CANopen |
X6 | Logic voltage |
X7 | Voltage supply |
X8 | Slot for NP5 controller, see also Dimensioned drawings and Pin assignment |
X9 | Encoder 1/2 and Hall sensor |
X10 | GPIO and communication interface |
X13 | Jumper for activating / deactivating the CANopen communication |
X15 | +5 V DC output |
P1 | Potentiometer for analog input 1 |
P2 | Potentiometer for analog input 2 |
SW1 to SW4 | Buttons for GPIO 1 to GPIO 4 |
SW5 | Reset button for the Discovery Board |
SW6 | Switch for 120 ohm termination resistor (CANopen) |
D1 to D6 | Status indicator for GPIO 1 to GPIO 6 |
D7 | Status indicator for the Discovery Board (+3.3 V DC) |
G1 | Earth connection |
Connector X1 – encoder 1 and Hall sensor
- Connector type: Phoenix base strip. MCV-0.5/8-G-2.5
- Voltage level: +5 V logic level
- Maximum admissible current: Max. 300 mA (together with +5 V DC output voltage on pin header X15)
- Hall inputs: Internally by means of 2.7 kΩ pull-up resistor connected to +5 V DC
Pin | Name / function |
---|---|
1 | Hall_U (H1) |
2 | Hall_V (H2) |
3 | Hall_W (H3) |
4 | +5 V DC |
5 | GND |
6 | ENC1_A |
7 | ENC1_B |
8 | ENC1_I |
Connector X2 – brake
- Connector type: Phoenix base strip. MCV-0.5/2-G-2.5
Pin | Name / function |
---|---|
1 | Brake + (connected with +UB) |
2 | Brake – (PWM-controlled open-drain output, max 1.5 A) |
Connector X3 – motor
- Connector type: Phoenix base strip. MCV-1.5/4-G-3.5
- Max. rated current 6 A RMS
- Max. peak current 10 A RMS (for 1 s)
Pin | Stepper motor | BLDC motor |
---|---|---|
1 | A | U |
2 | A\ | V |
3 | B | W |
4 | B\ |
Connector X4 - SPI via USB
A cable of type "micro USB" is needed for this USB connection.
You can find the corresponding Nanotec_ComToSPI driver on website www.nanotec.de.
Connector X5 – CANopen
- Connector type: RJ45 Duo Port, horizontal
Pin | Name / function |
---|---|
1 | CAN_H |
2 | CAN_L |
3 | GND |
4 | N.C |
5 | N.C |
6 | CAN_Shield |
7 | GND |
8 | +UB_Logic (24 V DC ±5%) |
Connector X6 – logic voltage
- Connector type: Phoenix base strip. MCV-0.5/2-G-2.5
Pin | Name / function |
---|---|
1 | +UB_Logic (24 V DC ±5%) |
2 | GND |
Connector X7 – operating voltage
- Connector type: Phoenix base strip. MCV-1.5/2-G-3.5
Pin | Name / function |
---|---|
1 | +UB (12 … 48 V DC ±5%) |
2 | GND |
Connector X9 – encoder and Hall sensors
- Connector type: Pin header, single row, RM 2.54 mm, 12-pin, vertical
- Voltage level: +5 V DC logic level
Pin | Name / function |
---|---|
1 | GND |
2 | ENC1_A |
3 | ENC1_B |
4 | ENC1_I |
5 | ENC1_CAP |
6 | ENC2_A |
7 | ENC2_B |
8 | ENC2_I |
9 | ENC2_CAP |
10 | Hall_U (H1) |
11 | Hall_V (H2) |
12 | Hall_W (H3) |
Connector X10 – I/O and communication interface
- Connector type: Pin header, two rows, RM 2.54 mm, 2x 15-pin, vertical
Pin | Name | Type | Note |
---|---|---|---|
1 | GND | Earth | |
2 | U_REF_ANALOG | Out | Analog reference voltage |
3 | DIO1_IO_CS | I/O | General I/O |
4 | DIO2_CD_CLK | I/O | General I/O |
5 | DIO3_CD_DIR | I/O | General I/O |
6 | DIO4_IO_MOSI | I/O | General I/O |
7 | DIO5_IO_MISO | I/O | General I/O |
8 | DIO6_IO_CLK | I/O | General I/O |
9 | ADC_ANALOG_1 | In | AD converter 1 |
10 | ADC_ANALOG_2 | In | AD converter 2 |
11 | GND | Earth | |
12 | SLOT_SPI_MOSI | - | SPI 1 |
13 | SLOT_SPI_MISO | - | SPI 1 |
14 | SLOT_SPI_SCK | - | SPI 1 |
15 | SLOT_SPI_CS | - | SPI 1 |
16 | SLOT_SYNC | - | System function, reserved |
17 | SLOT_RESET | - | System function, reserved |
18 | SLOT_BOOT | - | System function, reserved |
19 | GND | Earth | |
20 | COMM_RESET | - | System function, reserved |
21 | COMM_SYNC | - | System function, reserved |
22 | COMM_SPI_MOSI | - | SPI 2 |
23 | COMM_SPI_MISO | - | SPI 2 |
24 | COMM_SPI_SCK | - | SPI 2 |
25 | COMM_SPI_CS | - | SPI 2 |
26 | GND | Earth | |
27 | CANopen ON | - | CANopen ON |
28 | I2CSCL_CANRX | - | I2C Clock or CANopen RX |
29 | I2CSDA_CANTX | - | I2C Data or CANopen TX |
30 | GND | Earth |
Connector X13 – jumper for activating / deactivating the CANopen communication
- Connector type: Pin header, RM 2.54 mm, 2-pin, vertical
- Bridged with jumper: CANopen activated
- Not bridged with jumper: CANopen deactivated, SPI activated
Pin | Name / function |
---|---|
1 | +3.3V |
2 | CANopen ON |
Connector X15 – +5 V DC output
- Connector type: Pin header, RM 2.54 mm, 2-pin, vertical
- Maximum admissible current: Max. 300 mA (together with +5 V DC output voltage on pin header X1)
Pin | Name / function |
---|---|
1 | +5 V DC |
2 | GND |
Commissioning SPI via the Discovery Board
To establish a connection with the NP5-40, proceed as follows:
- Plug in the NP5-40 at X8.
- Unplug jumper X13.
- If you would like to address the controller via USB (virtual COM port), install the Nanotec_ComToSPI driver and connect the USB cable to X4. If you would like to address the controller directly via SPI, connect the SPI master to the controller via the SCK (source clock), MOSI (master out, slave in), MISO (master in, slave out) and CS (chip select) cables. Check that the earth (GND) of the master is connected to the earth of the controller.
- Connect your supply voltage to X7.
