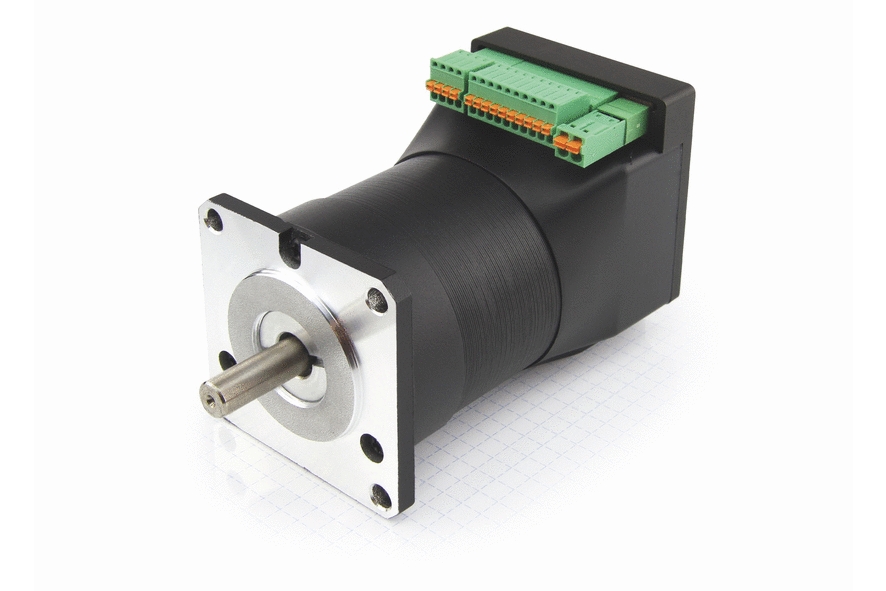

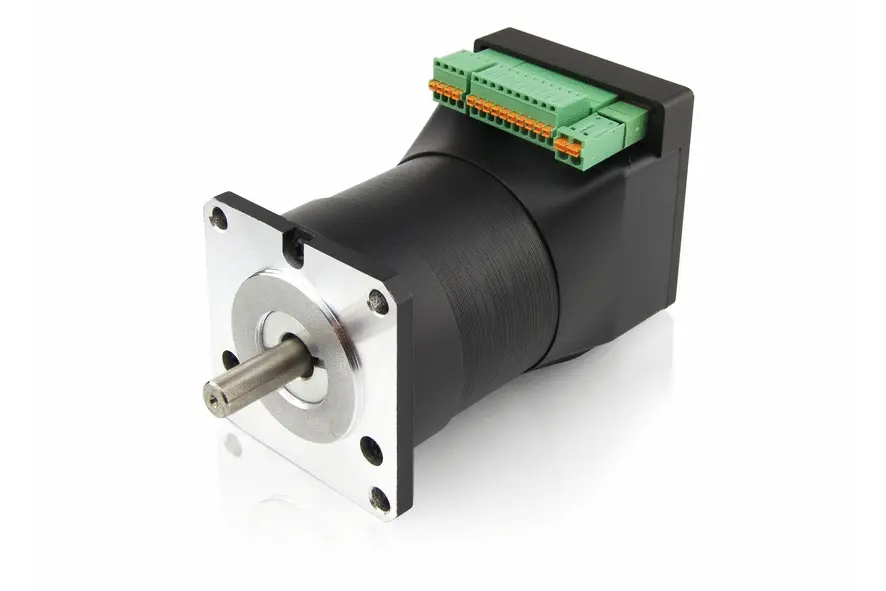

PD4-CB59M024035-E-01 –  Brushless DC motor with integrated controller – NEMA 23

Cadenas

Single Price

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

  • More stock available soon.
Combine article

Under „Downloads“ you will find the technical manual that corresponds with the stock firmware. Please refer to the new technical manual and the document “Instructions for Firmware Update to Version FIR-v2039” when using Plug & Drive Studio 2.


Please click on „Combine Article” or the plus sign to start the configurator.
Wheel drives for robotics Wheel drives for robotics (35)
Gearboxes for BLDC and stepper motors Gearboxes for BLDC and stepper motors (86)
Brakes for BLDC and stepper motors Brakes for BLDC and stepper motors (1)
Shaft modification Shaft modification (2)

Technical Data

  • Size
  • Fieldbus -
  • Operating Voltage 12 VDC - 24 VDC
  • Rated Torque
  • Rated Current (RMS) 8 A
  • Number of Digital Inputs 6
  • Number of Analog Inputs 1
  • Number of Digital Outputs 1
  • Encoder
  • Encoder Resolution 1024 CPR
  • Weight
  • NEMA 23
  • Interface USB
  • Rated Power 135 W
  • Rated Speed 3500 rpm
  • Peak Current (RMS) 20 A
  • Type of Digital Inputs 24 V, 5/24 V switchable
  • Type of Analog Input 0 - 10 V
  • Type of Digital Output open-drain (max. 24 V/100 mA)
  • Encoder Type single-turn absolute
  • Length

Dimensions

PD4-CB59M024035-E-01
Creation in progress ...

Torque Curves

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous Operation
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm
Force [N] at {{ curve.comparePoint | number : 2 }} mm/s Speed [mm/s] at {{ curve.comparePoint | number : 2 }} N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

Downloads

CAD
Datasheets
Manuals
Software
Conformity

Accessories

ZCPHOFK-MC0,5-4  * Connector
ZCPHOFK-MC0,5-10  * Connector
ZCPHOF-MC1,5-2  * Clip-on Plug, 2-pin, RM 3.5 mm
Z-K4700/50 Capacitor
IO-PD4-C-01 Test board with cable assembly for motors of the PD4-C-01 series
ZK-MICROUSB Micro USB cable, 1.5m
* Included in the scope of delivery for PD4-CB59M024035-E-01.
