DF20M012052-A –  Brushless DC flat motor

Cadenas

Single Price

Volume Discount

For quantities greater than 10, please contact us for volume pricing.

Availability

  • More stock available soon.

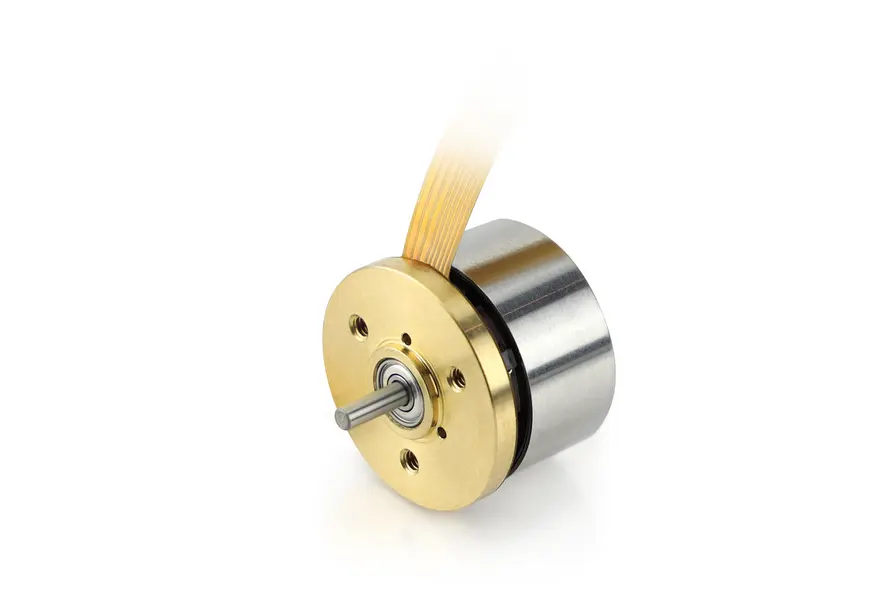

Very flat external rotor motor with a diameter of 20 mm and a rated power of 5 W. The DF20 is available with two different windings and equipped with digital Hall sensors. The open design without rotor housing ensures optimal heat dissipation.

  • Rated speed of 5,200 rpm
  • Rated voltage of 12 V or 24 V
  • 8-pole design
  • Smooth and stable operation at low speeds
  • FPC cable

The DF20 is ideally suited for use in prosthetic devices, robotic grippers or medical pumps.

Please note:
To connect this motor with a Nanotec motor controller (we recommend the controller CL3-E), an additional board for adapting the FPC cable to wires is required.

Technical Data

  • Rated Current 0.54 A
  • Line to Line Inductance 0.7 mH
  • Torque Constant 1.2 Ncm/A
  • Motor Connection FCP
  • Peak Torque
  • Rated Power 5 W
  • Rated Speed 5170 rpm
  • Size
  • Line to Line Resistance 6.9 Ohm
  • Rotor Inertia 5.1 gcm²
  • Weight
  • Peak Current 1.62 A
  • Length "A"
  • Rated Torque
  • Rated Voltage 12 V

Dimensions

DF20-A
Creation in progress ...

Downloads

CAD
Datasheets
Conformity

Accessories

ZIB-DF32 Additional board
