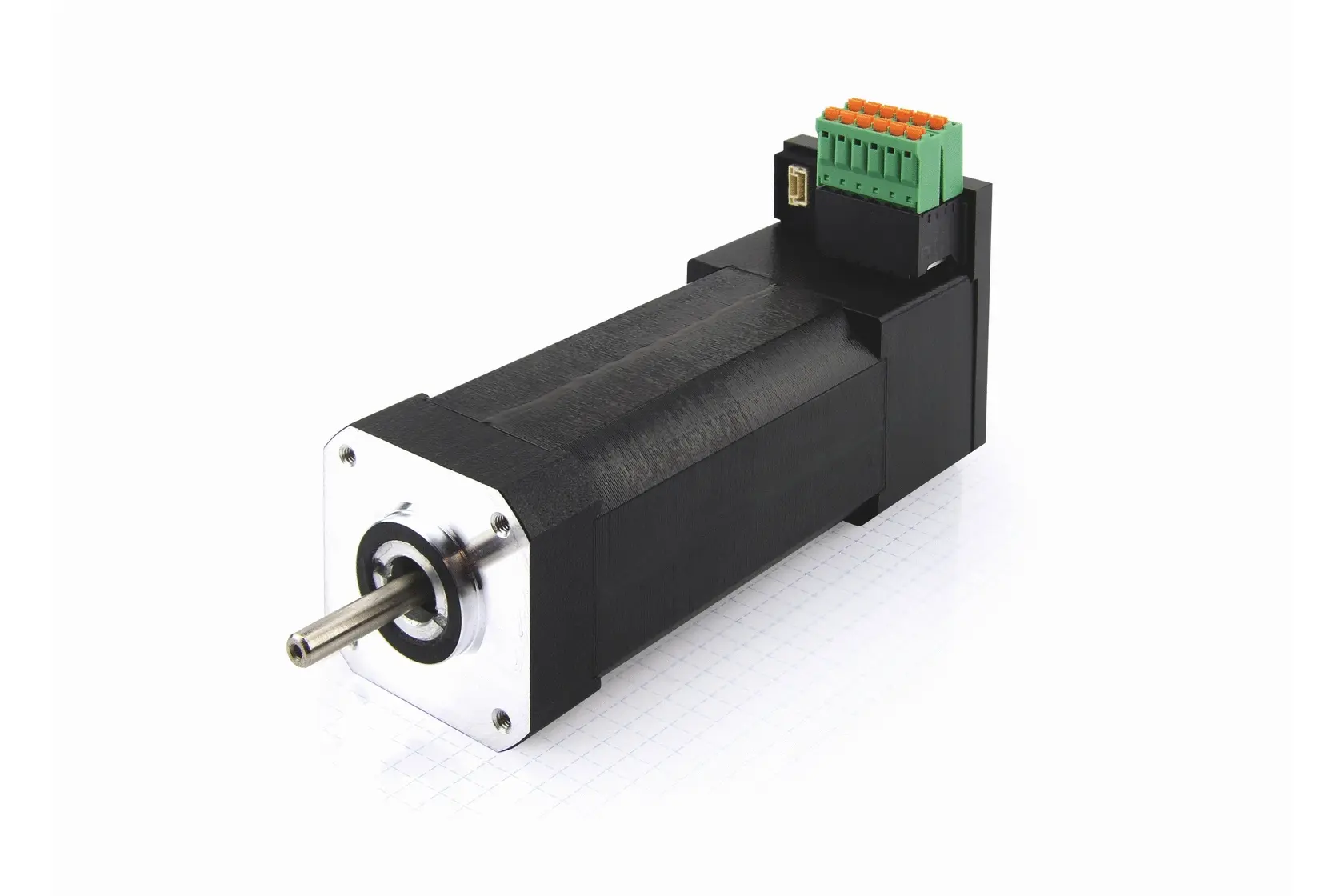

PD2-CB –  Brushless DC motor with integrated controller – NEMA 17

Smart BLDC motor with integrated controller and encoder. Ideally suited for highly dynamic applications with space constrictions, such as in laboratory automation. Space-saving all-in-one servo system that simplifies installation. Flange size: 42 mm.

• Controlled by fieldbus, clock & direction or analog/digital inputs
• Easy to parameterize via CANopen or USB
• Simple programming with the Plug & Drive Studio
• Closed loop with singleturn absolute encoder
• Long service life
• Motors with USB interface are particularly suited for control via IO (clock & direction, analog)

PD2-CB Articles
