Extension for EtherCAT (additional board)

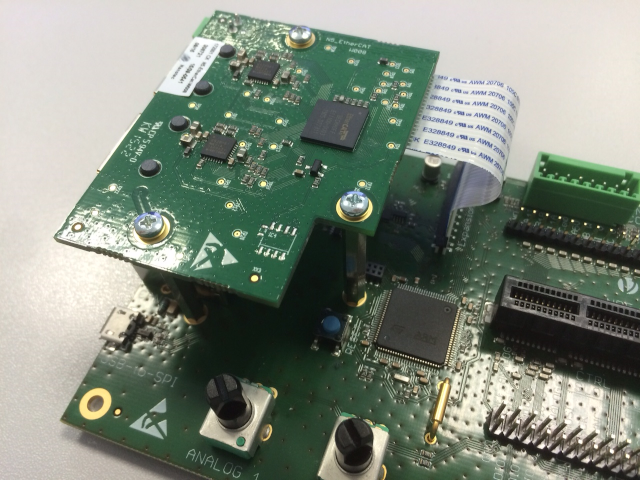

Discovery Board DK-NP5-68 is equipped with an additional board for communication via EtherCAT .

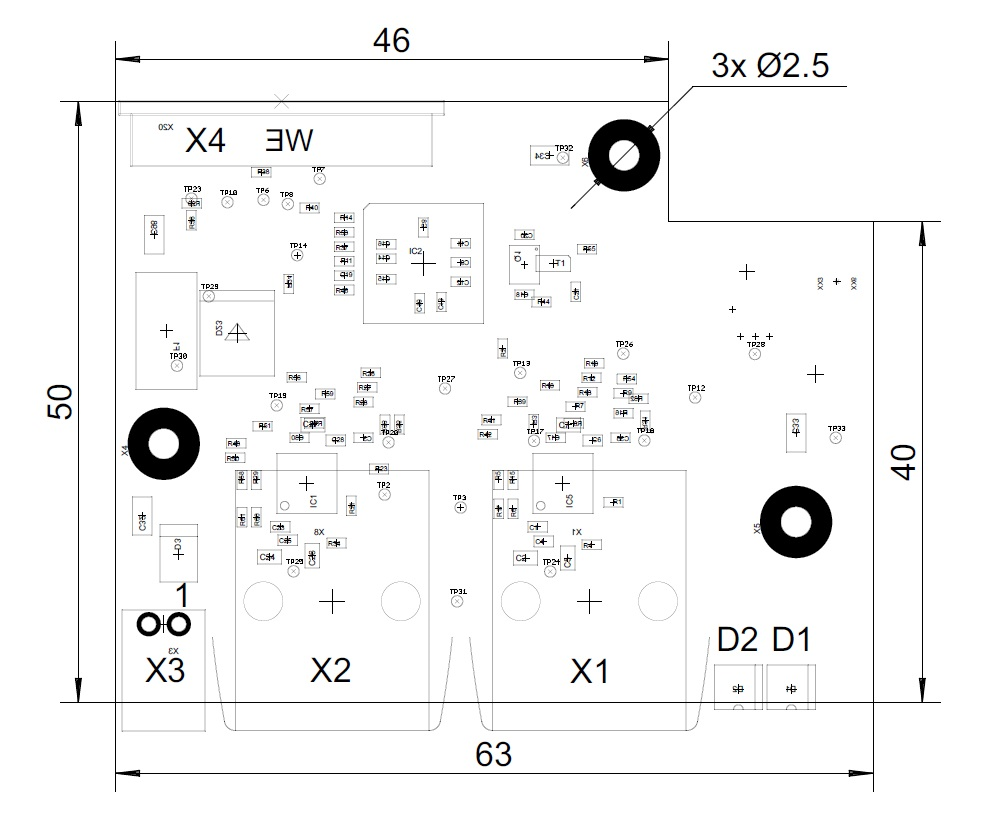

Dimensioned drawings – EtherCAT additional board
Dimensions are in [mm].
Hardware overview – EtherCAT additional board
| Name | Function | Note |
|---|---|---|
| X1 | EtherCAT IN | |
| X2 | EtherCAT OUT | |
| X4 | Connection to Discovery Board NP5 | |
| D1 | ERROR status indicator for EtherCAT | |
| D2 | RUN status indicator for EtherCAT |
